Description

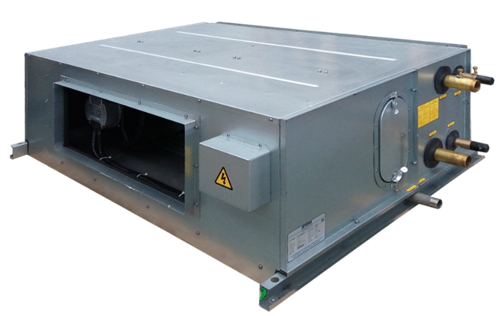

YECAH ceiling mounted cabinet fan coil units

Johnson Controls YORK® YECAH ceiling mounted compact cabinet fan coil units are high airflow and high static pressure air-conditioning units using high efficiency 355 mm diameter EC plug fan(s).

YECAH fan coil units have been designed incorporating variable speed EC motor technology to meet the needs of today’s sustainable building designs and to exceed the stringent European ErP 2015 energy standard. They are the ideal HVAC solution for both new construction and revovation projects for hotels, retail centers, office buildings, and education facilities. The 355 mm diameter EC plug fans operate at lower RPM, lower noise, and higher efficiency levels when compared to ceiling concealed units incorporating multiple fans with smaller diameter impellers.

YECAH fan coils are available in 4 models with integral EC fan(s) incorporate fully variable 0-10v speed control, and are suitable for a wide range of chilled water and hot water flow rates, including wide delta T applications to maximize pump energy savings. YECAH fan coil units are available with multiple coil options for each model (the 2 pipe system has 4 or 6 rows, and the 4 pipe system has 4+1, 6+1, 4+2 or 6+2 rows). The air flow ranges from nominal 750 L/s to 1500 L/s, while the external static pressure ranges from 175 Pa to 375 Pa.

Each YECAH unit is made of galvanized steel with 15 mm thick non-combustible thermal insulation. It contains built-in cooling & heating coils, single or dual EC variable speed plug fan assemblies, a removable inspection panel with sash catches, and large
removable access panels to the fan section.
